Products Description

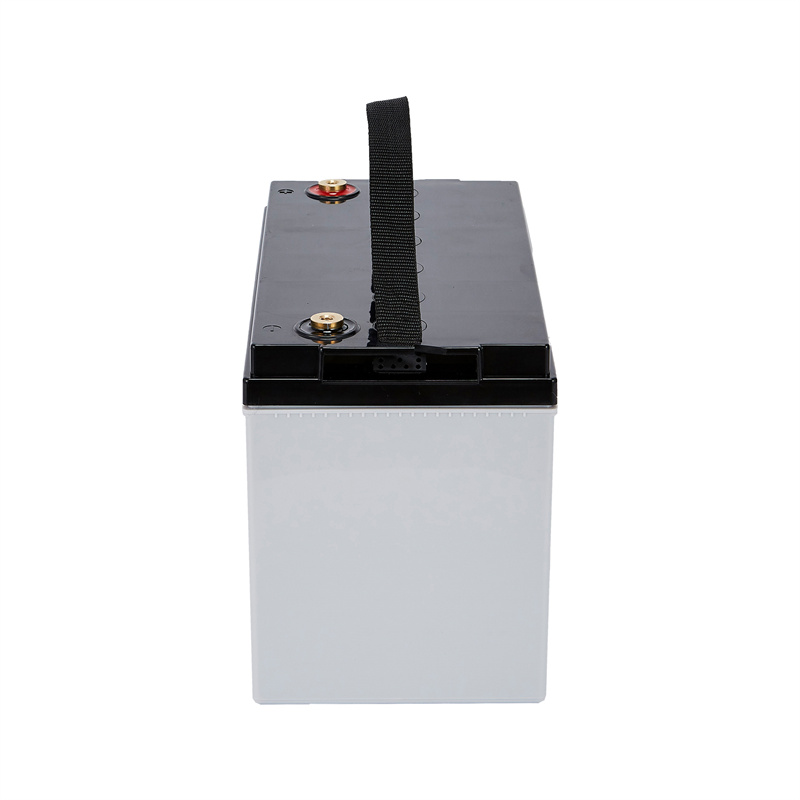

Description of 12V 100AH GreatBase Power
GreatBase Power 12V100AH is capable of wide protected operation temperature ranges of -40℃ to 65℃ which is high cost-effective solutions for solar, wind power systems and other renewable energy systems. The battery can conquer harsh environment, long lasting high performance in high and low temperatures. 12V GreatBase Powerbattery is designed for 12 years life time floating design life at 25℃, 2V GreatBase Powerbattery is for 18 years. At minus 15℃ (minus 5 degrees F), the capacity also can up to 65%. GEL 12V 100AH Keep high cycle life at 25℃(77℉), 600 cycles at 80% DOD and 2300 cycles at 30% DOD. By using our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free which can be used in outdoor and indoor environments without leaking or maintenance making it best in its class.
Advantages:
1. 50% longer cycle life than GP series.
2. High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
3. ABS battery case made by LG raw material to increase battery service life.
4. Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
5. TTP technique not only reduce internal resistance and material cost but also increase battery life.
6. Conduct four large current discharge texting before package to insure battery quality.
7. Full charge before delivery. Buy and use it directly.
SPECIFICATIONS:
| Model Name | GEL100-2 12V100AH | Length | 330mm (12.99 inches) |
| Normal Voltage | 12V | Width | 172mm (6.77 inches) |
| Capacity@20HR(AH) | 100AH | Height | 222mm (8.74 inches) |
| Weight | 28.20kg | Case | ABS |
APPLICATION:
Applications of 12V 100AH GEL Battery
Such as Solar/Wind power system, Transportation, Transportation, UPS system, Oil and Gas, Telecom, Emergency lighting, Medical equipment, etc.

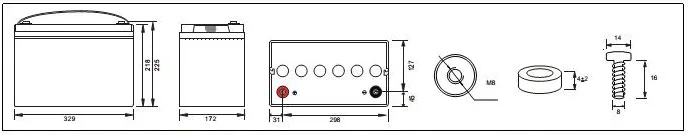

TERMINAL TYPE:
